- Lamp efficacy
Lamp efficacy
Ensuring the lamp efficiently converts electricity into light (lm/W).
- Ballast classification
Ballast classification
Controlling the electricity supply to the lamp (Energy Efficiency Index).
- Luminaire distribution
Luminaire distribution
Controlling light emission using optics which bend and shape the light to the correct location.
- System efficacy
System efficacy
Combining optical and thermal control within the luminaire (luminaire lm/W).
- Presence/absence detection
Presence/absence detection
Presence: Lights automatically turn on/off with movement. Absence: Lights automatically turn off and must be manually switched on.
- Daylight detection
Daylight detection
Artificial lighting which responds to the natural light conditions.
- Constant illuminance
Constant illuminance
A function designed to produce correct light levels for the duration of the maintenance period.
- Task-scene setting
Task-scene setting
Allowing the user to set scenes and adapt the lighting to different tasks.
- Timed off
Timed off
Automatic cut-off can be installed to turn all lights off during unoccupied hours.
- Task lighting
Task lighting
Lighting task areas with the correct amount of light.
- Zoning of lighting
Zoning of lighting
Lighting is zoned according to area use.
- Maintenance schedule
Maintenance schedule
Maintenance must be performed in response to product age, performance and environment.
- Waste light
Waste light
Eliminating waste light which does not hit the intended target.
- Reflectance
Reflectance
Taking advantage of light which is reflected from the surface within the space.
- Visible smart metering
Visible smart metering
Results of actions can be quickly seen as increased or decreased energy use to encourage responsible energy consumption.
LED射灯点亮大学会议室
图卢兹第一大学建于1229年,是法国历史第二悠久的大学。该校近期更换了最新的LED照明系统,以高效节能的方式焕新了这座近八百年的老校。

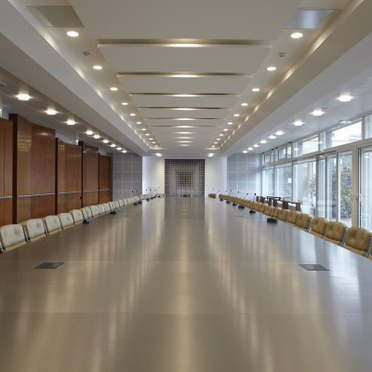

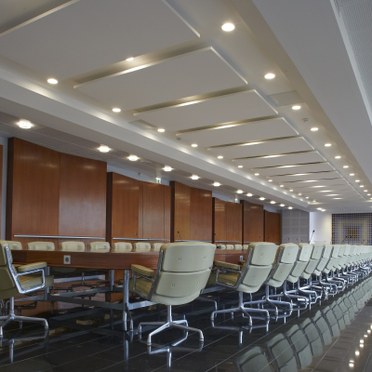

照明设计师Tasserahave在整个Gabriel Marty会议室中使用了嵌入式18W Base LED 165射灯以及带有装饰性磨砂玻璃环的33W Cruz 160 LED射灯。LED灯具以其出色的流明输出(分别为1000和2000流明)和能效以及超长的使用寿命和卓越的显色性脱颖而出。相较于之前使用的58W 荧光灯,全新照明方案在保持2.5kW用电负荷不变的情况下使得照度从250 lux上升为400 lux。

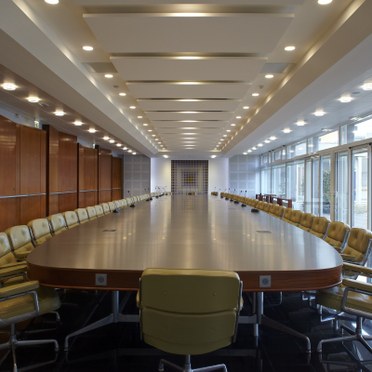

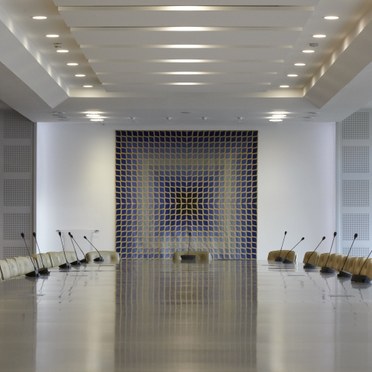

近100个全新可调光灯具分四行整齐排列,Cruz 160 LED则位于外圈,在时尚优雅的木质会议桌和周围光滑的地面上方提供均匀且无眩光的照明。可调节的1.2W D-CO LED Gyro射灯突出了墙壁尽头的图画,与天花板照明相得益彰。
该会议室由当地建筑师Charrièreet Jacob设计,由INEO of Toulouse进行电气安装。
