  • Zeta Pro G2 — ZETA PRO G2 240W 740 150X70 CL1 10kV

Zeta Pro G2 / ZETA PRO G2 240W 740 150X70 CL1 10kV

22666424

▼ Data Sheet

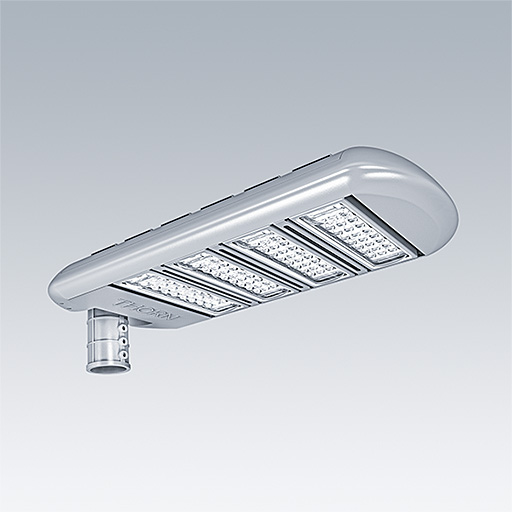

Pole mounted LED streetlight. Body: die-cast aluminium. Diffuser: polycarbonate. Special lens suitable for street lighting applications. 220VAC, 50/60Hz. 10kV surge protection, IP66, IK08, Class I electrical. Complete with 4000K LED

Dimensions: 754 x 310 x 118 mm
Luminaire input power: 236.2 W
Luminaire luminous flux: 25720 lm
Luminaire efficacy: 109 lm/W
Weight: 9.5 kg

更多选择
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:25720 lm
  • Luminaire efficacy*:109 lm/W
  • Colour Rendering Index min.:70
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):6
  • Rated median useful life*:L70 50000 h at 25 °C
  • Ballast:1x LED_DRV
  • Luminaire input power*:236.2 W Power factor = 0.95

▼ Photometry

配光配置
