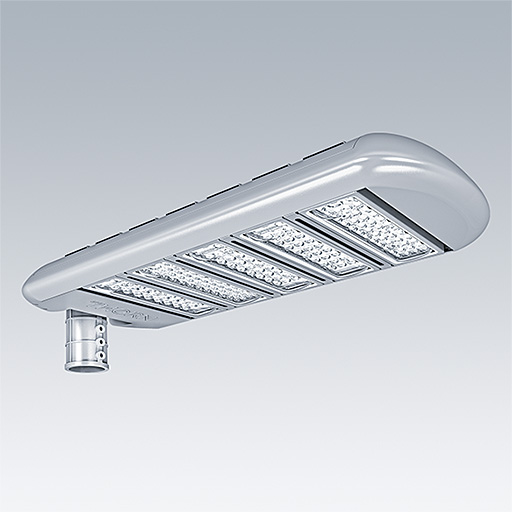

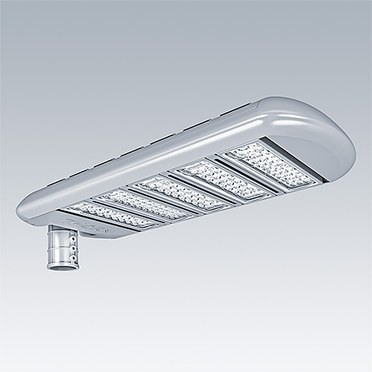

Zeta Pro G2
A future proof and scalable LED streetlight for functional road lighting application
- Modular and scalable design to cover full scale of applications
- Tool-less access to the gear
- Ease for maintenance thanks for self-cleaning design on body
Materials and Finish
Body: die-cast aluminium
Diffuser: polycarbonate
安装与固定
Pole mounted:
Prefabricate dia. 60mm lamp pole with the required pole height together with 3-core electrical Mains cable (by others). Make sure to connect the Earth wire to the lamp pole and the lamp pole must be contacted with the Earth completely.
Open the streetlight cover to connect the Mains through the waterproof connector. Close the cover and put the streetlight on top of the lamp pole and fix the screw tightly.
Specification
To specify state:
Pole mounted, modular and scalable design of LED streetlight with die-cast Aluminum body and PC diffuser, special made lens design suitable for street lighting applications; Input voltage: 220VAC, 50/60Hz; IP66 & IK08 design with CQC certificate.
As Thorn Zeta Pro
▼ Zeta Pro
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| ZETA PRO G2 120W 730 150X70 CL1 10kV | 113 | 12142 | LED | 5.90 | 22666427 | ||||
| ZETA PRO G2 120W 740 150X70 CL1 10kV | 113 | 12142 | LED | 5.90 | 22666422 | ||||
| ZETA PRO G2 180W 730 150X70 CL1 10kV | 177 | 19741 | LED | 7.70 | 22666428 | ||||
| ZETA PRO G2 180W 740 150X70 CL1 10kV | 177 | 19741 | LED | 7.70 | 22666423 | ||||
| ZETA PRO G2 240W 730 150X70 CL1 10kV | 236 | 25720 | LED | 9.50 | 22666429 | ||||
| ZETA PRO G2 240W 740 150X70 CL1 10kV | 236 | 25720 | LED | 9.50 | 22666424 | ||||
| ZETA PRO G2 300W 730 150X70 CL1 10kV | 292 | 31628 | LED | 10.70 | 22666430 | ||||
| ZETA PRO G2 300W 740 150X70 CL1 10kV | 292 | 31628 | LED | 10.70 | 22666425 | ||||
| ZETA PRO G2 60W 730 150X70 CL1 10kV | 58 | 6333 | LED | 4.50 | 22666426 | ||||
| ZETA PRO G2 60W 740 150X70 CL1 10kV | 58 | 6333 | LED | 4.50 | 22666421 |
