  • Tonpak — TONPAK LED G2 50W 840 100X50 CL1

Tonpak / TONPAK LED G2 50W 840 100X50 CL1

22666314

▼ Data Sheet

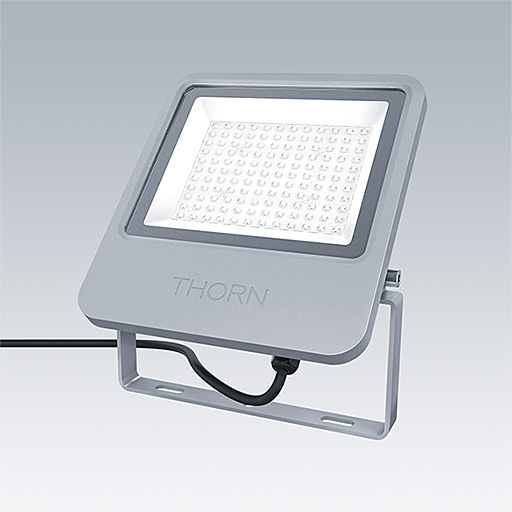

A high performance LED floodlight designed to cover general purpose area lighting and sports applications. Body and frame: die-cast aluminium, painted grey (RAL9006). Lens: PC with 4mm thick toughened glass. Class I electrical. High impact resistance IP66, IK08. Complete with 4000K LED.

Dimensions: 349 x 285 x 67 mm
Luminaire input power: 49.6 W
Total luminous flux: 5926 lm
Luminaire efficacy: 119 lm/W
Weight: 4.5 kg

更多选择
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:5926 lm
  • Luminaire efficacy*:119 lm/W
  • Colour Rendering Index min.:80
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):4
  • Rated median useful life*:L70 50000 h at 25 °C
  • Ballast:1x EL2
  • Luminaire input power*:49.6 W Power factor = 0.95
  • Dimming:FO

▼ Photometry

配光配置

▼ CalcExpress

Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.

步骤1：技术数据
(lm)
(m)
(m)
(%)
步骤2：
(m)
(m)
(m)
(m)
(%)
Step 3: Result
(lx)
(%)
