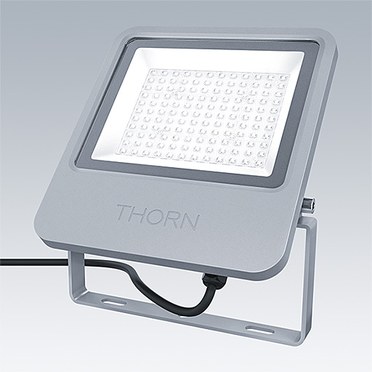

Tonpak
A high performance LED floodlight suitable for a wide range of area lighting applications with significant energy savings
Materials and Finish
Body: Die-cast Aluminium painted in grey RAL9006
Lens: PC
Glass: 4mm thick toughened
安装与固定
Surface mounted:
Place the LED floodlight with mounting bracket on the predefined installation location, use two stainless steel type screws and nuts (M10 size for 50/75/100W; M12 size for 150/200W) to fix the mounting bracket firmly. Connect mains power to the power cable of the LED floodlight.
Specification
To specify state:
Surface mounted, high performance area floodlighting LED luminaire with die-cast aluminium body in grey RAL9006. Efficient optical PC lens and 4mm thick toughened glass to cover general purpose area lighting and sport lighting applications. Available in 2 sizes with lumen packages from 6500lm to 26000lm. High impact resistance IP66 & IK08.
As Thorn TONPAK LED G2
▼ Tonpak
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| TONPAK LED G2 100W 840 100X50 CL1 | 103 | 11606 | LED | 4.50 | 22666316 | ||||
| TONPAK LED G2 150W 840 100X50 CL1 | 145 | 17664 | LED | 6.60 | 22666317 | ||||
| TONPAK LED G2 200W 840 100X50 CL1 | 201 | 25195 | LED | 6.60 | 22666318 | ||||
| TONPAK LED G2 50W 840 100X50 CL1 | 50 | 5926 | LED | 4.50 | 22666314 | ||||
| TONPAK LED G2 75W 840 100X50 CL1 | 71 | 8340 | LED | 4.50 | 22666315 |
