  • Titus 2C — TITUS 2C LED13000-850 L1200 HF SA

Titus 2C / TITUS 2C LED13000-850 L1200 HF SA

22665791

▼ Data Sheet

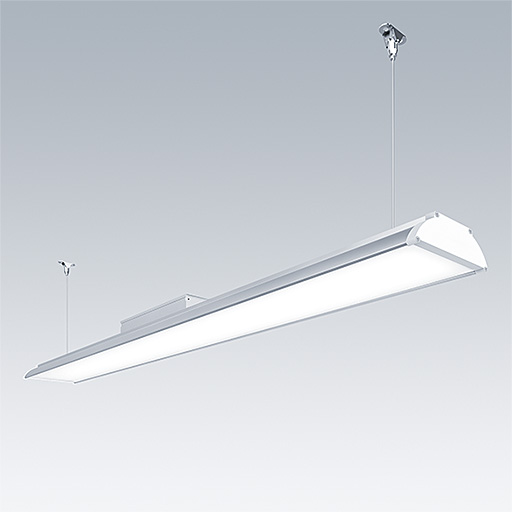

A suspended linear LED high bay. Electronic, fixed output control gear. Body: extruded aluminium, powder coated silver. Optics: Linear PC lens and diffuser for a comfortable lighting effect. Mains voltage: 220-240VAC / 50-60Hz. Complete with 3000K LED.

Dimensions: 1200 x 139 x 96 mm
Luminaire input power: 108.3 W
Luminaire luminous flux: 13014 lm
Luminaire efficacy: 120 lm/W
Weight: 3.53 kg

更多选择
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:13014 lm
  • Luminaire efficacy*:120 lm/W
  • Colour Rendering Index min.:80
  • Correlated colour temperature*:5000 Kelvin
  • Chromaticity tolerance (initial MacAdam):5
  • Rated median useful life*:L70 50000 h at 25 °C
  • Ballast:1x HF_
  • Luminaire input power*:108.3 W
  • Dimming:FO
  • Maintenance category CIE 97:C - Closed Top Reflector

▼ Photometry

配光配置

▼ CalcExpress

Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.
