  • Titus 2C — TITUS 2C LED15000-850 L1200 HF

Titus 2C / TITUS 2C LED15000-850 L1200 HF

22665790

▼ Data Sheet

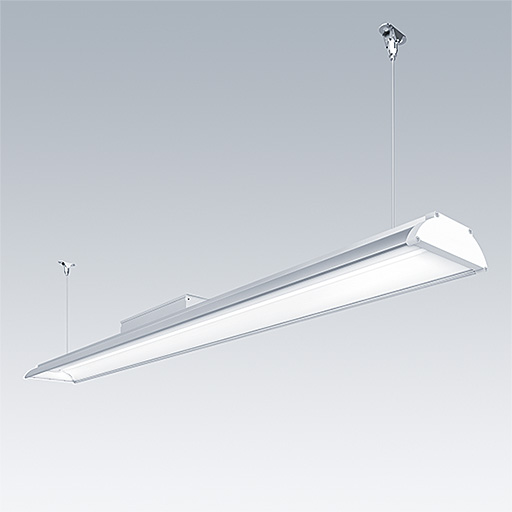

A suspended linear LED high bay. Electronic, fixed output control gear. Body: extruded aluminium, powder coated silver. Optics: Linear PC lens for a comfortable lighting effect. Mains voltage: 220-240VAC / 50-60Hz. Complete with 5000K LED.

Dimensions: 1200 x 139 x 96 mm
Luminaire input power: 106.3 W
Luminaire luminous flux: 13760 lm
Luminaire efficacy: 129 lm/W
Weight: 3.23 kg

更多选择
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:13760 lm
  • Luminaire efficacy*:129 lm/W
  • Colour Rendering Index min.:80
  • Correlated colour temperature*:5000 Kelvin
  • Chromaticity tolerance (initial MacAdam):5
  • Rated median useful life*:L70 50000 h at 25 °C
  • Ballast:1x HF_
  • Luminaire input power*:106.3 W
  • Dimming:FO
  • Maintenance category CIE 97:C - Closed Top Reflector

▼ Photometry

配光配置

▼ CalcExpress

Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.

步骤1：技术数据
(lm)
(m)
(m)
(%)
步骤2：
(m)
(m)
(m)
(m)
(%)
Step 3: Result
(lx)
(%)
