  • Chalice 2C — CHAL 2C 150 LED1400-840 HF

Chalice 2C / CHAL 2C 150 LED1400-840 HF

22667686

▼ Data Sheet

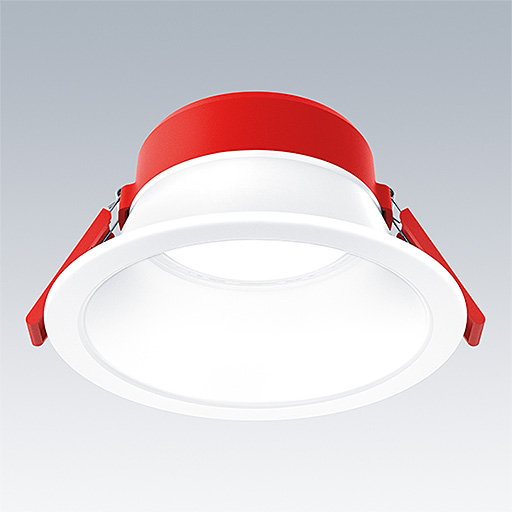

A Recessed LED downlight. fixed output control gear. Class II electrical. Body: aluminium, anodised. Reflector: polycarbonate. Suitable for mounting in ceiling thicknesses of 1-25mm. Beam angle: 40°. Complete with 4000K LED.

Dimensions: Ø188 x 93 mm
Luminaire input power: 14.2 W
Luminaire luminous flux: 1414 lm
Luminaire efficacy: 100 lm/W
Weight: 0.42 kg

更多选择
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:1414 lm
  • Luminaire efficacy*:100 lm/W
  • Colour Rendering Index min.:80
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L70 50000 h at 25 °C
  • Ballast:1x HF_
  • Luminaire input power*:14.2 W Power factor = 0.95
  • Dimming:FO
  • Maintenance category CIE 97:C - Closed Top Reflector

▼ Photometry

配光配置

▼ CalcExpress

Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.

步骤1：技术数据
(lm)
(m)
(m)
(%)
步骤2：
(m)
(m)
(m)
(m)
(%)
Step 3: Result
(lx)
(%)
