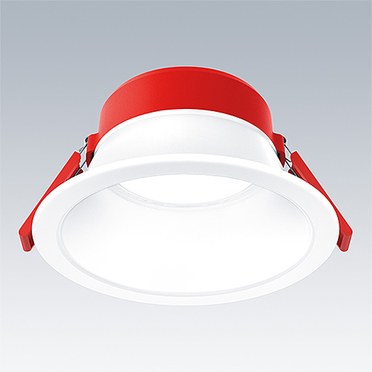

Chalice 2C

  • Chalice 2C

An aesthetically designed downlight with flexible application and installation options

  • Versatile LED downlight serving end-users with a high quality good performance product
  • Reliable lighting equipment which complies with widely adopted safety standards and regulations
  • Comprehensive product profile and accessories provides a range of options fitting different user scenarios
  • Simple but modern design offers easy incorporation into architectural designs with different usages

Materials and Finish

Body: anodized aluminium
Diffuser :PC
Mounting bracket: Coated steel sheet metal

安装与固定

Recessed mounting are available in Chalice 2C. Cutting the ceiling with 155mm or 170mm holes (depends on 6" or 8" inch model chosen), fix the product with the spring clips on 1-25mm ceiling opening.

Specification

Recessed mounted LED downlight with flexible dimming systems for retail and office application. Elegant & concise design with excellent ingress protection and multiple driver selection. Colour rendering Ra > 80, colour temperature 3000K & 4000K. Beam angles 40° Chromaticity tolerance (initial MacAdam) 3. Exceptional long lifetime performance Ta25° up to 50.000h for luminous flux at L70 of initial value. Mains voltage: 220-240V/ 50Hz.
As Thorn Chalice 2C.

New Product
LumExpress Product
eControl Product

▼ Chalice 2C

Description   TypeWt (kg)SAP Code
CHAL 2C 150 LED1400-830 HFLED0.4222667685
CHAL 2C 150 LED1400-840 HFLED0.4222667686
CHAL 2C 150 LED1400-840 HFALED0.4222667687
CHAL 2C 150 LED1400-840 HFXLED0.4222667688
CHAL 2C 150 LED2000-830 HFLED0.4222667689
CHAL 2C 150 LED2000-840 HFLED0.4222667690
CHAL 2C 150 LED2000-840 HFALED0.4222667691
CHAL 2C 150 LED2000-840 HFXLED0.4222667692
CHAL 2C 200 LED2500-830 HFLED0.4422667693
CHAL 2C 200 LED2500-840 HFLED0.4422667694
CHAL 2C 200 LED2500-840 HFALED0.4422667695
CHAL 2C 200 LED2500-840 HFXLED0.4422667696
