  • Cesar Opera, walk over — CESAR OPERA L WO 3L RGBW MB PWM SS

Cesar Opera, walk over / CESAR OPERA L WO 3L RGBW MB PWM SS

96701152

▼ Data Sheet

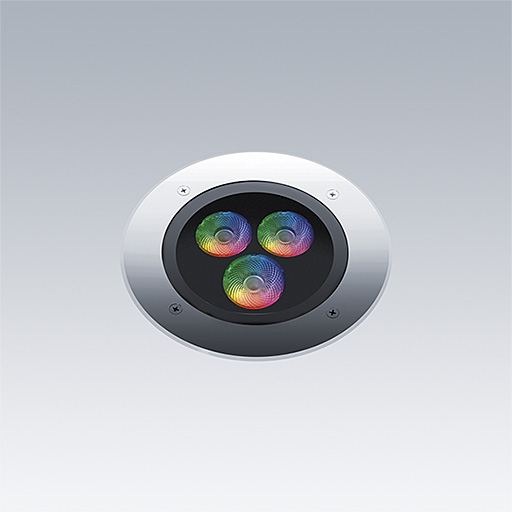

Cesar Opera, walk over RGBW a floor recessed, architectural LED luminaire for decorative facade lighting, medium beam distribution. Fixed output LED driver. Class III electrical, IP67, Impact strength: IK09. Housing: Die-cast aluminium, unpainted. Working ambient temperature: -20°C to +40°C. Complete with RGBW LEDs.

Dimensions: Ø200 x 240 mm
Luminaire input power: 19.8 W
Luminaire luminous flux: 639 lm
Luminaire efficacy: 32 lm/W
Weight: 3.36 kg

更多选择
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:639 lm
  • Luminaire efficacy*:32 lm/W
  • Chromaticity tolerance (initial MacAdam):3
  • Rated useful life (B10)*:L80 70000 h at 25 °C
  • Ballast:0x LED_DRV
  • Luminaire input power*:19.8 W
  • Dimming:FIX

▼ Photometry

配光配置

▼ CalcExpress

Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.

步骤1：技术数据
(lm)
(m)
(m)
(%)
步骤2：
(m)
(m)
(m)
(m)
(%)
Step 3: Result
(lx)
(%)
