  • Cesar Opera, drive over — CESAR OPERA XL DO 16L 940 NB HFX SS

Cesar Opera, drive over / CESAR OPERA XL DO 16L 940 NB HFX SS

96700968

▼ Data Sheet

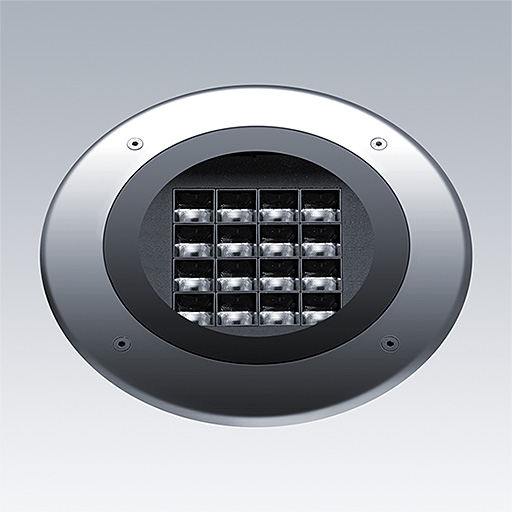

Cesar Opera, drive over extra-large a floor recessed, architectural LED luminaire for decorative facade lighting, narrow beam distribution. DALI-2 dimmable LED driver. Class I electrical, IP67, Impact strength: IK10. Housing: Die-cast aluminium, unpainted. Working ambient temperature: -20°C to +45°C. Complete with 4000K LED.

Dimensions: Ø375 x 200 mm
Luminaire input power: 33 W
Luminaire luminous flux: 2620 lm
Luminaire efficacy: 79 lm/W
Weight: 9.73 kg

更多选择
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:2620 lm
  • Luminaire efficacy*:79 lm/W
  • Colour Rendering Index min.:90
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated useful life (B10)*:L80 70000 h at 25 °C
  • Ballast:0x LED_DRV
  • Luminaire input power*:33 W
  • Dimming:Dali2Dim
