  • Axyl Trim — AXYL TRIM L PERF 6L927 A/S HF BK

Axyl Trim / AXYL TRIM L PERF 6L927 A/S HF BK

96700292

▼ Data Sheet

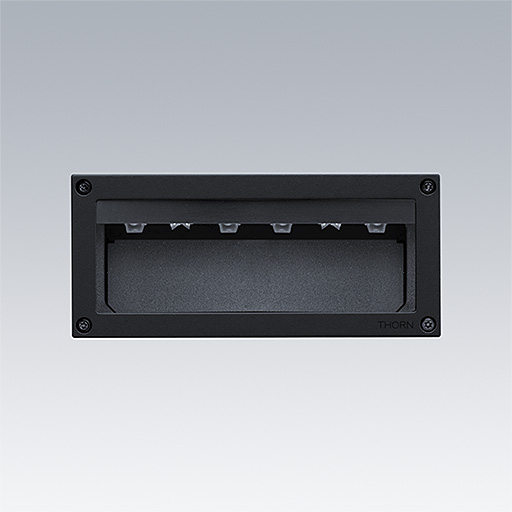

Axyl Trim, performance facia, a wall recessed, architectural LED luminaire for decorative facade lighting, with asymmetrical distribution. Class I electrical.. Fixed output LED driver. Recessed box 96700290 to be order separately, IP65, Impact strength: IK06. Housing: Die-cast aluminium, powder coated textured black (close to RAL9005). Working ambient temperature: -20°C to +50°C. Complete with 2700K LED. Recessed box 96700290 to be order separately.

Dimensions: 230 x 102 x 95 mm
Luminaire input power: 11.8 W
Luminaire luminous flux: 408 lm
Luminaire efficacy: 35 lm/W
Weight: 1.48 kg

更多选择
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:408 lm
  • Luminaire efficacy*:35 lm/W
  • Colour Rendering Index min.:90
  • Correlated colour temperature*:2700 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated useful life (B10)*:L80 70000 h at 25 °C
  • Ballast:1x LED_DRV
  • Luminaire input power*:11.8 W Power factor = 0.94
  • Dimming:FIX

▼ Photometry

配光配置

▼ CalcExpress

Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.

步骤1：技术数据
(lm)
(m)
(m)
(%)
步骤2：
(m)
(m)
(m)
(m)
(%)
Step 3: Result
(lx)
(%)
