  • Axyl Opera — AXYL OPERA L WO 3L RGBW WB PWM SS

Axyl Opera / AXYL OPERA L WO 3L RGBW WB PWM SS

96701171

▼ Data Sheet

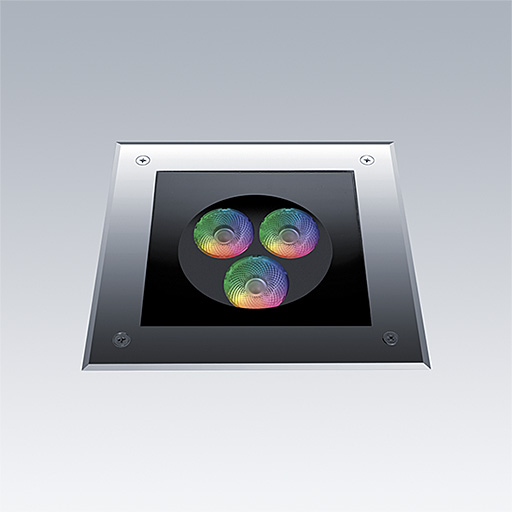

Axyl Opera, RGBW versions, a floor recessed, architectural LED luminaire for decorative facade lighting, with wide beam distribution. Class III electrical.. fixed output control gear LED driver. , IP67, Impact strength: IK09. Housing: Die-cast aluminium, unpainted textured stainless steel. Working ambient temperature: -20°C to +40°C...

Dimensions: 200 x 200 x 135 mm
Luminaire input power: 15 W
Luminaire luminous flux: 467 lm
Luminaire efficacy: 31 lm/W
Weight: 3.99 kg

更多选择
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:467 lm
  • Luminaire efficacy*:31 lm/W
  • Colour Rendering Index min.:-1
  • Chromaticity tolerance (initial MacAdam):3
  • Rated useful life (B10)*:L80 70000 h at 25 °C
  • Ballast:1x LED_DRV
  • Luminaire input power*:15 W
  • Dimming:Fixed output

▼ Photometry

配光配置

▼ CalcExpress

Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.

步骤1：技术数据
(lm)
(m)
(m)
(%)
步骤2：
(m)
(m)
(m)
(m)
(%)
Step 3: Result
(lx)
(%)
