  • Axyl Opera — AXYL OPERA XL WO 5L RGBW WB PWM SS

Axyl Opera / AXYL OPERA XL WO 5L RGBW WB PWM SS

96701058

▼ Data Sheet

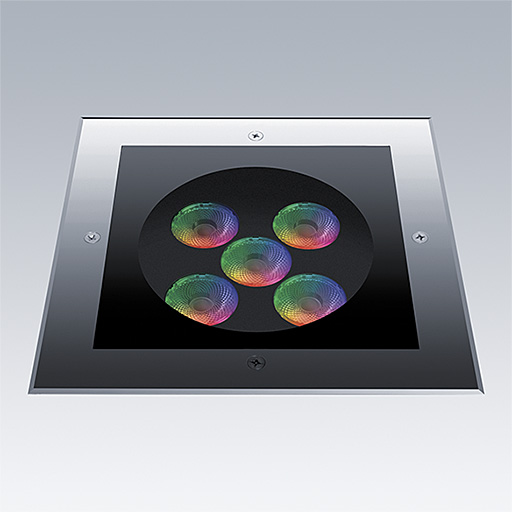

Axyl Opera, RGBW versions, a floor recessed, architectural LED luminaire for decorative facade lighting, with wide beam distribution. Class III electrical.. fixed output control gear LED driver. , IP67, Impact strength: IK09. Housing: Die-cast aluminium, unpainted textured stainless steel. Working ambient temperature: -20°C to +45°C...

Dimensions: 275 x 275 x 245 mm
Luminaire input power: 23 W
Luminaire luminous flux: 764 lm
Luminaire efficacy: 33 lm/W
Weight: 8.19 kg

更多选择
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:764 lm
  • Luminaire efficacy*:33 lm/W
  • Colour Rendering Index min.:-1
  • Chromaticity tolerance (initial MacAdam):3
  • Rated useful life (B10)*:L80 70000 h at 25 °C
  • Ballast:1x LED_DRV
  • Luminaire input power*:23 W
  • Dimming:Fixed output
