  • Cesar Strut — CESAR STRUT H3500 1L930 S/S HFX ANT

Cesar Strut / CESAR STRUT H3500 1L930 S/S HFX ANT

96700285

▼ Data Sheet

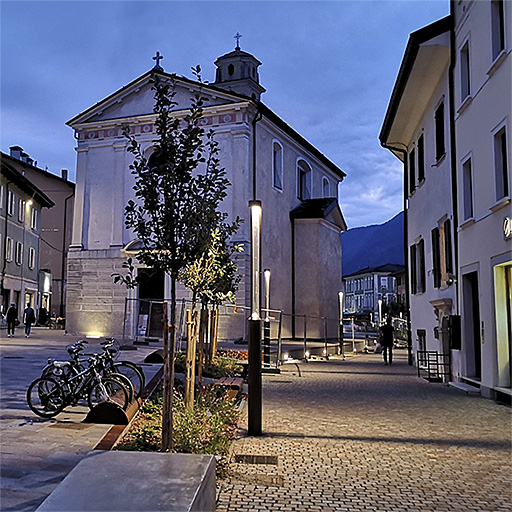

Cesar Strut a free-standing, architectural LED luminaire for decorative facade lighting, Symmetric super-narrow distribution luminaire (superspot beam) distribution. DALI-2 dimmable LED driver. Class II electrical, IP65, Impact strength: IK10. Housing: Die-cast aluminium, powder coated anthracite. Working ambient temperature: -20°C to +50°C. Complete with 3000K LED.

Dimensions: Ø200 x 3500 mm
Luminaire input power: 55 W
Luminaire luminous flux: 4235 lm
Luminaire efficacy: 77 lm/W
Weight: 31.28 kg

更多选择
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:4235 lm
  • Luminaire efficacy*:77 lm/W
  • Colour Rendering Index min.:90
  • Correlated colour temperature*:3000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated useful life (B10)*:L80 70000 h at 25 °C
  • Ballast:1x LED_DRV
  • Luminaire input power*:55 W
  • Dimming:Dali2Dim

▼ Photometry

配光配置

▼ CalcExpress

Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.

步骤1：技术数据
(lm)
(m)
(m)
(%)
步骤2：
(m)
(m)
(m)
(m)
(%)
Step 3: Result
(lx)
(%)
