  • Axyl Greet Bollard — AXYL GREETB H580 SE 56L 940 A/S HFX WH

Axyl Greet Bollard / AXYL GREETB H580 SE 56L 940 A/S HFX WH

96700649

▼ Data Sheet

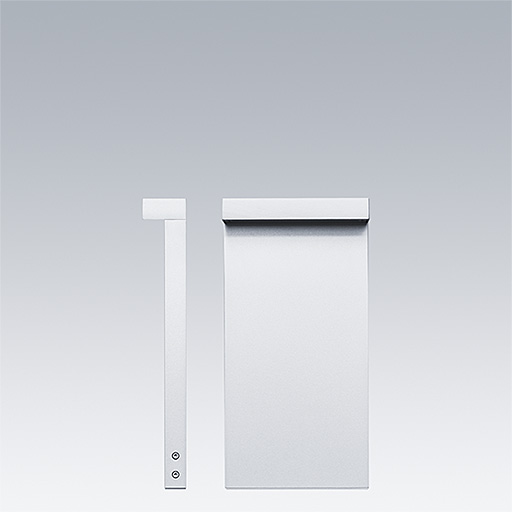

Axyl Greet B, height 580, a free-standing, decorative LED bollard with asymmetrical distribution. Class II electrical.. DALI-2 dimmable LED driver. , IP65, Impact strength: IK06. Housing: Die-cast aluminium, powder coated textured white (close to RAL9016). Working ambient temperature: -20°C to +40°C. Complete with 4000K LED..

Dimensions: 85 x 290 x 580 mm
Luminaire input power: 11.3 W
Luminaire luminous flux: 800 lm
Luminaire efficacy: 71 lm/W
Weight: 6.68 kg

更多选择
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:800 lm
  • Luminaire efficacy*:71 lm/W
  • Colour Rendering Index min.:90
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated useful life (B10)*:L80 70000 h at 25 °C
  • Ballast:1x LED_DRV
  • Luminaire input power*:11.3 W Power factor = 0.95
  • Dimming:Dali2Dim

▼ Photometry

配光配置

▼ CalcExpress

Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.

步骤1：技术数据
(lm)
(m)
(m)
(%)
步骤2：
(m)
(m)
(m)
(m)
(%)
Step 3: Result
(lx)
(%)
