  • Avenue — AV 36L35-730 WSC GL CL1 WS0.3 T60 ANT

Avenue / AV 36L35-730 WSC GL CL1 WS0.3 T60 ANT

96684715

▼ Data Sheet

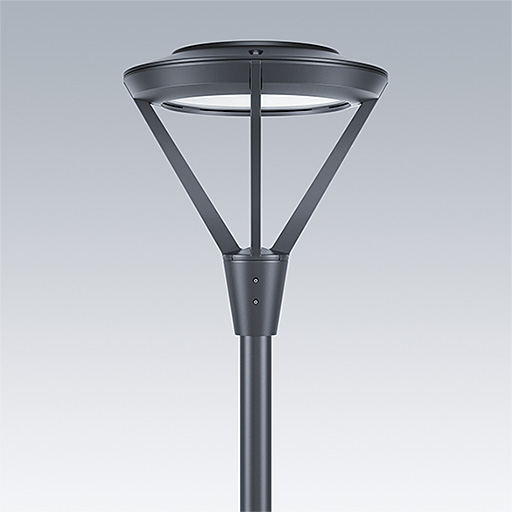

Sustainable urban lighting without compromise with 36 LEDs driven at 350mA and a Wide Street Comfort distribution optic. Class I electrical, IP66, Impact strength:. fixed output control gear Electronic. Body: Die-cast aluminium in anthracite (close to RAL7043). Robust solution with excellent corrosion resistance of C5. Enclosure: flat glass. Post top mounting to Ø60mm column. Pre-wired with 0.3m, 1.5mm² H07RN-F cable. Complete with 3000K LED

Dimensions: Ø501 x 547 mm
Luminaire input power: 38 W
Luminaire luminous flux: 5280 lm
Luminaire efficacy: 139 lm/W
Weight: 10.48 kg
Scx: 0.13 m²

更多选择
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:5280 lm
  • Luminaire efficacy*:139 lm/W
  • Colour Rendering Index min.:70
  • Ballast:1 x 87500825 LCO 90/200-1050/165 NF C ADV3
  • Correlated colour temperature*:3000 Kelvin
  • Chromaticity tolerance (initial MacAdam):5
  • Rated useful life (B10)*:L90 100000 h at 35 °C
  • Luminaire input power*:38 W Power factor = 0.86
  • Dimming:FO
