  • Cesar Opera, walk over — CESAR OPERA XL WO 16L 940 AS HFX WH

Cesar Opera, walk over / CESAR OPERA XL WO 16L 940 AS HFX WH

96701017

▼ Data Sheet

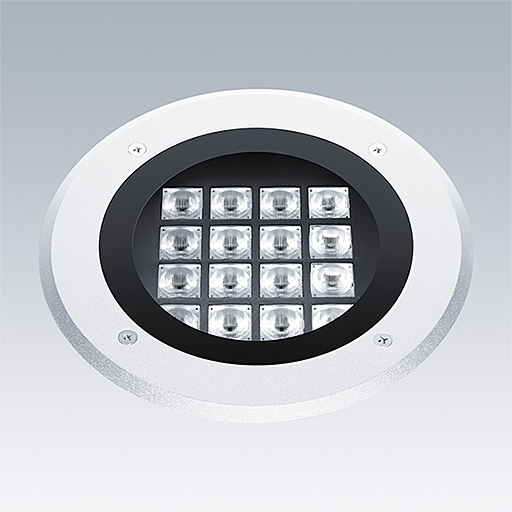

Cesar Opera, walk over extra-large size asymmetric beam a floor recessed, architectural LED luminaire for decorative facade lighting, asymmetrical distribution. DALI-2 dimmable LED driver. Class I electrical, IP67, Impact strength: IK09. Housing: Die-cast aluminium, powder coated white. Working ambient temperature: -20°C to +40°C. Complete with 4000K LED.

Dimensions: Ø275 x 245 mm
Luminaire input power: 33 W
Luminaire luminous flux: 2669 lm
Luminaire efficacy: 81 lm/W
Weight: 6.02 kg

更多选择

    ▼ Photometry

    配光配置

    ▼ CalcExpress

    Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.

    步骤1：技术数据
    (lm)
    (m)
    (m)
    (%)
    步骤2：
    (m)
    (m)
    (m)
    (m)
    (%)
    Step 3: Result
    (lx)
    (%)
