  • Cruz MSF — CRUZ MSF 140 2750-840 WD HF

Cruz MSF / CRUZ MSF 140 2750-840 WD HF

22682091

▼ Data Sheet

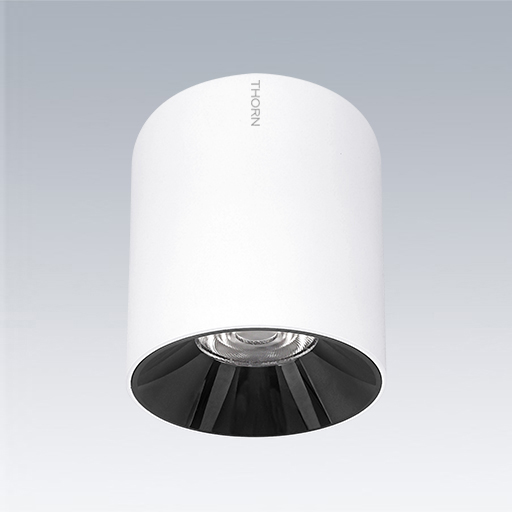

Highly efficient integrated LED surface-mounted downlight with lens and anti-glare reflector provides harmonious light. A surface mounted LED luminaire. On-off control gear Class I electrical, IP20, Impact strength: IK06. Body: aluminium, white (RAL9003). Can be suspended by using wire suspension and rope suspension accessory kits (to be ordered separately). Colour rendering Ra > 80, colour temperature 4000 K.

Dimensions: Ø140 x 145 mm
Luminaire input power: 24 W
Luminaire efficacy: 115 lm/W
Weight: 1.2 kg

更多选择

    ▼ Photometry

    配光配置

    ▼ CalcExpress

    Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.

    步骤1：技术数据
    (lm)
    (m)
    (m)
    (%)
    步骤2：
    (m)
    (m)
    (m)
    (m)
    (%)
    Step 3: Result
    (lx)
    (%)
