英国纽卡斯尔联队足球俱乐部
纽卡斯尔联队的圣詹姆斯公园球场是英格兰东北部最为古老的足球场,最新的LED照明使它重新焕发光芒。
使用LED光源的19盏高效射灯和筒灯为贵宾专区提供照明,151盏嵌入式Quattro LED则为楼上两层的主通道提供照明。全新照明计划使得电力运营成本分别减少约30%和50%。

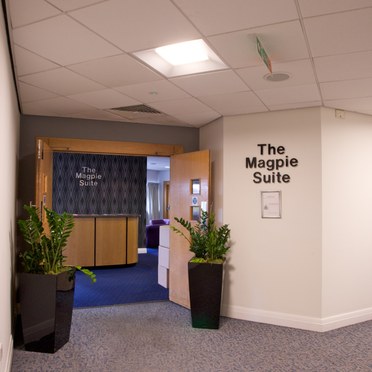

由Martin Thompson和Steve Gleghorn组成的Thorn索恩照明团队负责贵宾专区的翻修计划,他们清楚地知道项目产品需要出色的外观、优质的白光以及便利的人员控制和经济的运营。因此他们选择了12盏Base LED 1000和D-CO LED筒灯、两个Tidon LED可调角度格栅射灯和四盏Prospector LED射灯的组合。
原先的安装由CFL射灯和极度耗能的配件组成,LED的使用使得电力负荷大幅从400W降至275W。
俱乐部的照明维护与福斯大桥的粉刷有几分相似,电工的繁杂程度近乎相当。每场比赛前都需要更换大量灯泡。LED射灯的平均寿命为卤钨灯的24倍,即3571个比赛日。维护成本的减少显而易见。
为了解决根据个人需要提供照明水平以及减少运行成本的问题,球场安装了SensaLink照明控制系统。使用者可以通过简单的场景面板调整房间照明水平,人体感应器的使用则进一步降低了用电量,实现能源和金钱的节约。

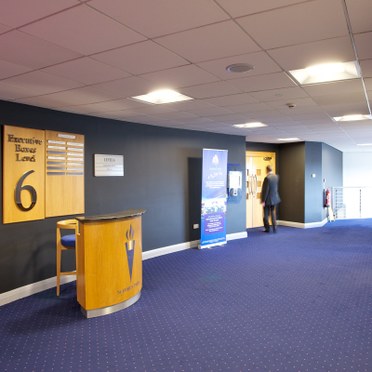

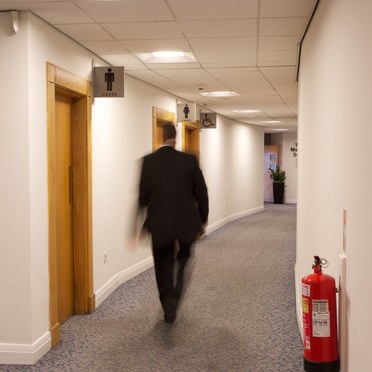

足球俱乐部还需要改善第五和第六层过道的照明,这项工程更为巨大。以下典型例子可以说,相较于273盏主要由双管CFL组成的射灯,更为广泛的配光能够使俱乐部受益。

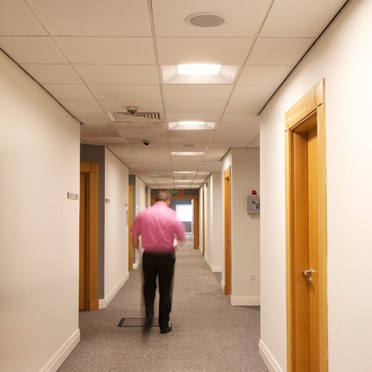

嵌入式Quattro LED灯具可以提供高水平的柔和低亮度照明和完全差异化的视觉效果。此外,它们可以显著提升显色性(92 CRI v 80 CRI)。相较于此前的安装,电力负载减少近一半(14.1kW降至7.4kW),每年节约碳排放税成本近4000英镑,此外,50000小时的光源寿命有望节约大笔维护费用。

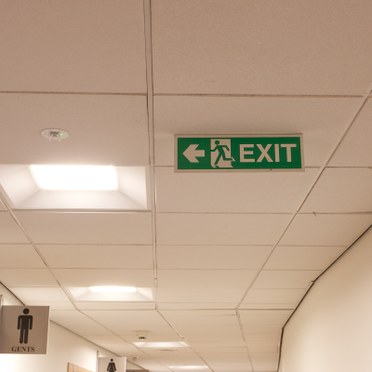

如遇断电,贵宾专区和过道将很快成为障碍。为了协助宾客尽快找到正确的疏散路线,45盏备用Voyager LED Route和LED Area灯具将发挥作用。相较于传统荧光系统,LED紧急照明灯具外形更为美观,用电更加节约,整体电源要求更低。所有灯具均使用单一高性能2.7W LED光源和复杂光学器件来改善灯光控制。因此该装置可以在更广的范围内使用,节约安装和运行成本。
