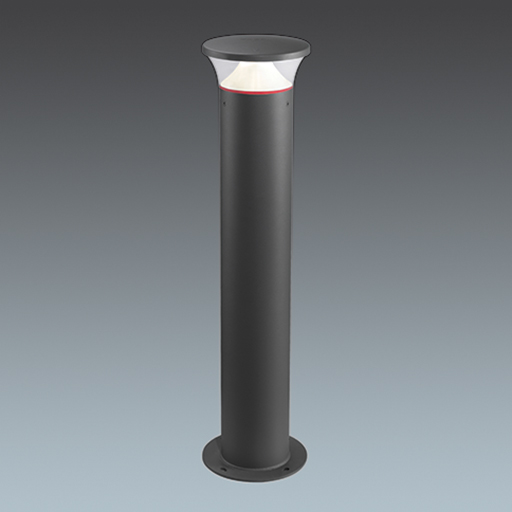

Thor Bollard
Elegant vandal resistant bollard with high performance optic offering a comfortable light and energy saving solutions
- Best in class LED optic provides a comfortable, low glare direct and indirect light with asymmetric or symmetric distribution, sympathetic to users with a lower viewing angle
- Durable and vandal resistant (IK10 40 joules for the slim version)
- Bi power dimming and presence detection options reduce energy consumption
- Available in two sizes – slim and wide – with the wide version also suitable for use as street furniture
Materials and Finish
Column and base: aluminium
Canopy: die-cast aluminum (EN AC 44300, standard corrosion class C5).
Diffuser: clear anti UV Polycarbonate
Reflector: white Polycarbonate
Gear Box: Polypropylene
Canopy and Column colour: powder coated dark grey (close to 7043)
安装与固定
Slim version: suitable for Root and Flange mounting: 4 x anchor bolts M14 (96009822 to be ordered separately), spacing: 150mm.
Wide version: suitable for Flange mounting: 4 x anchor bolts M14 (to be ordered separately), spacing: 200mm.
Ready to install: prewired fittings to be connected with a connection box (to be ordered separately) through the anti vandal access door (via Torx hollow T30)
For RGB and Bi power versions choose the colour of the decorative led band or deactivate the Bi Power function at installation through the access door.
Gear box (including the driver) and head (including the LEDs) are easily replaceable as spares.
Specification
To specify state: Elegant and vandal resistant bollard offering asymmetric and symmetric distributions, combining both direct and indirect comfortable light, with decorative colour and dimming/presence detection.
As Thorn Thor Bollard.
▼ MGR base adaptors
| Description | Wt (kg) | SAP Code | |||||||
|---|---|---|---|---|---|---|---|---|---|
| MGR BASE RAZE/DCO/THOR/CANDLE BOL | 6.00 | 96635554 | |||||||
| MGR SPIKE RAZE/DCO/THOR/CANDLE BOL | 10.00 | 96635553 |
