  • QbaMAX LED — QBAMAX LED G2 830 36W 60D

QbaMAX LED / QBAMAX LED G2 830 36W 60D

22665373

▼ Data Sheet

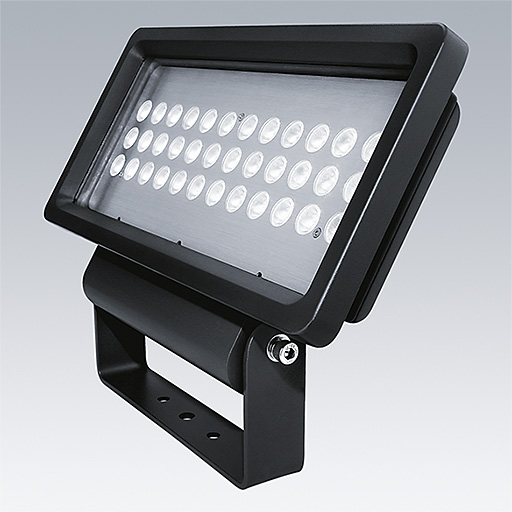

LED floodlight for facade lighting applications. Body and frame in anodised aluminium finish. tempered front glass. Complete with 3000K LED. Input Voltage: 24VDC.

Dimensions: 350 x 255 x 63 mm
Luminaire input power: 36 W
Luminaire luminous flux: 3500 lm
Luminaire efficacy: 97 lm/W
Weight: 3.9 kg

更多选择
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:3500 lm
  • Luminaire efficacy*:97 lm/W
  • Colour Rendering Index min.:80
  • Correlated colour temperature*:3000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L70 50000 h at 25 °C
  • Ballast:1x HF_
  • Luminaire input power*:36 W
  • Dimming:FO

▼ Photometry

配光配置

▼ CalcExpress

Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.

步骤1：技术数据
(lm)
(m)
(m)
(%)
步骤2：
(m)
(m)
(m)
(m)
(%)
Step 3: Result
(lx)
(%)
