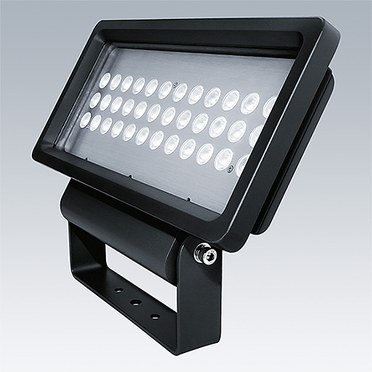

QbaMAX LED
A highly cost competitive rectangular LED floodlight for facade lighting applications
- Very compact structure, best suited for limited installation space
- Professional heatsink design to guarantee 50khrs lighting performance
- Easy for tilting with adjustable mounting bracket when focusing the light
Materials and Finish
Body: Anodized Aluminium
Front cover: Tempered Glass
安装与固定
Surface: Put the LED floodlight with mounting bracket on the predefined installation location, use two stainless steel type screws (M8 size) to fix the mounting bracket firmly; connect the power cable of the LED floodlight, positive (Red) & negative (Black) with a 24VDC LED transformer.
Specification
To specify state:
Surface mounted, compact rectangular LED floodlight with aluminium body and special heatsink design suitable for facade lighting applications; Colour rendering Ra > 80; colour temperature 3000K/4000K/RGB; long lifetime performance Ta35° up to 50.000hrs for luminous flux at L70 of initial value; Input voltage: 24VDC, Sealed to IP65.
As Thorn QBAMAX LED G2
▼ QbaMAX LED
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Socket | Wt (kg) | SAP Code | |||
|---|---|---|---|---|---|---|---|---|---|
| QBAMAX LED G2 830 36W 60D | 36 | 3500 | LED | LED | 3.90 | 22665373 | |||
| QBAMAX LED G2 840 36W 60D | 36 | 3500 | LED | LED | 3.90 | 22665376 |
