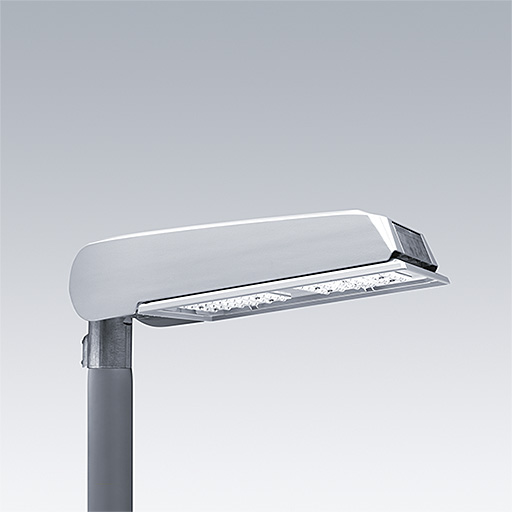

CiviTEQ

  • CiviTEQ
  • CiviTEQ

Cost-effective LED road lighting solution for refurbishment projects

  • Offers the best balance between cost of ownership and performance. Fitted with R-PEC® optic to bring safe and efficient light to residential streets and high traffic roads
  • Available in 2 sizes up to 17klm, 12 precise light distributions and versatile installation possibilities - CiviTEQ adapts to any installation layout
  • Comprehensive range of controls incorporating the Bi-Power Switch to activate or deactivate dimming onsite
  • Compact and lightweight luminaire for easy handling and installation with a low windage

Materials and Finish

Performance version: Canopy: die-cast aluminium, powder coated grey RAL 9006 (other RAL colours on request) with rear clip in stainless steel
Basic version: Canopy: reinforced plastic, RAL 9006 with screws
Body: die-cast aluminium unpainted
Spigot: plain die-cast aluminium
Enclosure: toughened glass
Screws: stainless steel

安装与固定

CL1: Suitable for mounting on top Ø76mm or side Ø60mm or Ø42mm.
CL2: Suitable for mounting on top Ø76mm or side Ø60mm (MA34/42mm with accessory).
Variable tilting setting: 0° to +10° on post top mounting and -20° to 0° on lateral mounting, in 5° steps.
Tilt adaptor 0° with bracket tilted at -45° as accessory.
Cable gland for Ø8 to 12mm cable. Delivered ready to install, complete with factory fitted integral gear tray, all supplied in a single carton.

Specification

To specify state:
Unobtrusive, cost effective road lighting solution with 12 precise lighting distributions, fully versatile installation possibilities, low maintenance requirements and no need to replace LED driver. CMS with Radio Frequency and Powerline system, is also compatible with other controls systems. Choice of options and accessories: 10KV, automatic disconnection, BPS, LRT, photocell and external louvres.
As Thorn CiviTEQ

  • New Product
New Product
LumExpress Product
eControl Product

CiviTEQ Accessories

Description   Wt (kg)SAP Code
CQ ADAPTOR MLE -45°0.2096643222
CQ L LOUVRES FRONT & BACK3.0096628087
CQ S LOUVRES FRONT & BACK2.4096643221

CiviTEQ Small, Narrow road optic

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
CQ 12L105-740 NR BPS CL1 M42414802LED5.7096643267
CQ 12L105-740 NR BPS CL1 M60414802LED5.7096627856
CQ 12L105-740 NR BPS CL2 M60 R9006-S414802LED5.7096627876
CQ 12L35-740 NR BPS CL1 M42151886LED5.7096643264
CQ 12L35-740 NR BPS CL1 M60151886LED5.7096627853
CQ 12L35-740 NR BPS CL2 M60 R9006-S151886LED5.7096627873
CQ 12L50-740 NR BPS CL1 M42212592LED5.7096643265
CQ 12L50-740 NR BPS CL1 M60212592LED5.7096627854
CQ 12L50-740 NR BPS CL2 M60 R9006-S212592LED5.7096627874
CQ 12L70-740 NR BPS CL1 M42283469LED5.7096643266
CQ 12L70-740 NR BPS CL1 M60283469LED5.7096627855
CQ 12L70-740 NR BPS CL2 M60 R9006-S283469LED5.7096627875
CQ 24L105-740 NR BPS CL1 M42799546LED5.7096643271
CQ 24L105-740 NR BPS CL1 M60799546LED5.7096627860
CQ 24L105-740 NR BPS CL2 M60 R9006-S799546LED5.7096627880
CQ 24L35-740 NR BPS CL1 M42283769LED5.7096643268
CQ 24L35-740 NR BPS CL1 M60283769LED5.7096627857
CQ 24L35-740 NR BPS CL2 M60 R9006-S283769LED5.7096627877
CQ 24L50-740 NR BPS CL1 M42385174LED5.7096643269
CQ 24L50-740 NR BPS CL1 M60385174LED5.7096627858
CQ 24L50-740 NR BPS CL2 M60 R9006-S385174LED5.7096627878
CQ 24L70-740 NR BPS CL1 M42526914LED5.7096643270
CQ 24L70-740 NR BPS CL1 M60526914LED5.7096627859
CQ 24L70-740 NR BPS CL2 M60 R9006-S526914LED5.7096627879
CQ 36L35-740 NR BPS CL1 M42395627LED5.7096643272
CQ 36L35-740 NR BPS CL1 M60395627LED5.7096627861
CQ 36L35-740 NR BPS CL2 M60 R9006-S395627LED5.7096627881
CQ 36L50-740 NR BPS CL1 M42557700LED5.7096643273
CQ 36L50-740 NR BPS CL1 M60557700LED5.7096627862
CQ 36L50-740 NR BPS CL2 M60 R9006-S557700LED5.7096627882
CQ 36L70-740 NR BPS CL1 M427710216LED5.7096643274
CQ 36L70-740 NR BPS CL1 M607710216LED5.7096627863
CQ 36L70-740 NR BPS CL2 M60 R9006-S7710216LED5.7096627556

CiviTEQ Small, Narrow road optic, configured products

CiviTEQ Small, Wide street optic

CiviTEQ Small, Wide street optic, configured products

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
CQ 24L35-740 WS BPS CL1 PN M76283744LED5.5096628335
CQ 36L35-740 WS BPS CL1 PN M76395590LED5.6096628337

CiviTEQ Small, Pedestrian walkway and cycle path optic

CiviTEQ Small, Wide street comfort optic

CiviTEQ Small, Wet road optic

CiviTEQ Small, Road comfort optic

CiviTEQ Small, Wide road optic

CiviTEQ Small, Extra wide street optic

CiviTEQ Small, Extra wide street optic, configured products

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
CQ 12L70-740 EWS BPS CL1 M76283404LED5.5096628323
CQ 24L70-740 EWS BPS CL1 M76526785LED5.4096628324
CQ 36L35-740 EWS BPS CL1 PN M42395522LED5.5096628480

CiviTEQ Small, Pedestrian crossing optic

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
CQ 36L50-740 IVS CL2 M60557059LED5.7096643154
CQ 36L70-740 IVS CL2 M60778859LED5.7096643155

CiviTEQ Small, Pedestrian crossing optic, configured products

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
CQ 36L70-757 IVS CL2 M60779310LED5.7096643227

CiviTEQ Small, Street comfort optic

CiviTEQ Small, Extra wide street comfort optic

CiviTEQ Small, Extra wide road optic

CiviTEQ Large, Narrow road optic

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
CQ 48L35-740 NR BPS CL1 M42517538LED8.4096643275
CQ 48L35-740 NR BPS CL1 M60517538LED9.6096627864
CQ 48L35-740 NR BPS CL2 M60 R9006-S517538LED9.6096627884
CQ 48L50-740 NR BPS CL1 M427310348LED8.4096643276
CQ 48L50-740 NR BPS CL1 M607310348LED9.6096627865
CQ 48L50-740 NR BPS CL2 M60 R9006-S7310348LED9.6096627885
CQ 48L70-740 NR BPS CL1 M4210313828LED9.1096643277
CQ 48L70-740 NR BPS CL1 M6010313828LED9.6096627866
CQ 48L70-740 NR BPS CL2 M60 R9006-S10313828LED9.6096627886
CQ 60L35-740 NR BPS CL1 M42639385LED8.4596643278
CQ 60L35-740 NR BPS CL1 M60639385LED9.6096627867
CQ 60L35-740 NR BPS CL2 M60 R9006-S639385LED9.6096627887
CQ 60L50-740 NR BPS CL1 M429112969LED8.4596643279
CQ 60L50-740 NR BPS CL1 M609112969LED9.6096627868
CQ 60L50-740 NR BPS CL2 M60 R9006-S9112969LED9.6096627888
CQ 60L70-740 NR BPS CL1 M4212817073LED9.1396643280
CQ 60L70-740 NR BPS CL1 M6012817073LED9.6096627869
CQ 60L70-740 NR BPS CL2 M60 R9006-S12817073LED9.6096627889
CQ 72L35-740 NR BPS CL1 M427511213LED9.2096643281
CQ 72L35-740 NR BPS CL1 M607511213LED9.6096627870
CQ 72L35-740 NR BPS CL2 M60 R9006-S7511213LED9.6096627890
CQ 72L50-730 NR BPS CL2 M6010913816LED9.3096628403
CQ 72L50-740 NR BPS CL1 M4210915296LED9.2096643282
CQ 72L50-740 NR BPS CL1 M6010915296LED9.6096627871
CQ 72L50-740 NR BPS CL2 M60 R9006-S10915296LED9.6096627891
CQ 72L70-740 NR BPS CL1 M4215220196LED9.2096643283
CQ 72L70-740 NR BPS CL1 M6015220196LED9.6096627872
CQ 72L70-740 NR BPS CL2 M60 R9006-S15220196LED9.6096627892

CiviTEQ Large, Narrow road optic, configured products

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
CQ 48L35-740 NR BPS CL1 M76517538LED8.5996643296
CQ 48L50-740 NR BPS CL1 M767310348LED8.5996643297
CQ 48L70-740 NR BPS CL1 M7610313828LED9.2896643298
CQ 60L35-740 NR BPS CL1 M76639385LED8.6296643299
CQ 60L50-740 NR BPS CL1 M769112969LED8.6296643300
CQ 60L70-740 NR BPS CL1 M7612817073LED9.3196643301
CQ 72L35-740 NR BPS CL1 M767511213LED9.3896643302
CQ 72L50-740 NR BPS CL1 M7610915296LED9.3896643303
CQ 72L70-740 NR BPS CL1 M7615220196LED9.3896643304

CiviTEQ Large, Wide street optic

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
CQ 48L35-740 WS BPS CL1 M42517488LED8.4096665483
CQ 48L35-740 WS BPS CL1 PN M76517488LED8.5196628336
CQ 48L35-740 WS BPS CL2 M60517488LED9.6096643030
CQ 48L50-740 WS BPS CL1 M427310280LED8.4096665484
CQ 48L50-740 WS BPS CL2 M607310280LED9.6096643031
CQ 48L70-740 WS BPS CL1 M4210313738LED9.1096665485
CQ 48L70-740 WS BPS CL2 M6010313738LED9.6096643032
CQ 60L35-740 WS BPS CL1 M42639324LED8.4596665486
CQ 60L35-740 WS BPS CL2 M60639324LED9.6096643033
CQ 60L50-730 WS BPS CL2 M609111637LED8.5596628570
CQ 60L50-740 WS BPS CL1 M429112884LED8.4596665487
CQ 60L50-740 WS BPS CL2 M609112884LED9.6096643034
CQ 60L70-740 WS BPS CL1 M4212816961LED9.1396665488
CQ 60L70-740 WS BPS CL2 M6012816961LED9.6096643035
CQ 72L35-740 WS BPS CL1 M427511140LED9.2096665489
CQ 72L35-740 WS BPS CL1 PN M767511140LED9.2996628338
CQ 72L35-740 WS BPS CL2 M607511140LED9.6096643036
CQ 72L50-730 WS BPS CL2 M6010913725LED9.3096628346
CQ 72L50-740 WS BPS CL1 M4210915196LED9.2096665490
CQ 72L50-740 WS BPS CL2 M6010915196LED9.6096643037
CQ 72L70-740 WS BPS CL1 M4215220064LED9.2096665491
CQ 72L70-740 WS BPS CL2 M6015220064LED9.6096643038

CiviTEQ Large, Pedestrian walkway and cycle path optic

CiviTEQ Large, Wide street comfort optic

CiviTEQ Large, Wet road optic

CiviTEQ Large, Road comfort optic

CiviTEQ Large, Wide road optic

CiviTEQ Large, Extra wide street optic

CiviTEQ Large, Pedestrian crossing optic

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
CQ 48L35-740 IVS CL2 M60516951LED9.6096643156
CQ 48L70-740 IVS CL2 M6010312586LED9.6096643158
CQ 60L70-740 IVS CL2 M6012815554LED9.6096643161
CQ 72L70-740 IVS CL2 M6015218423LED9.6096643164

CiviTEQ Large, Pedestrian crossing optic, configured products

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
CQ 48L70-757 IVS CL2 M6010312586LED9.2096643228
CQ 60L70-757 IVS CL2 M6012815554LED9.2496643229
CQ 72L70-757 IVS CL2 M6015218423LED9.3096643230

CiviTEQ Large, Street comfort optic

CiviTEQ Large, Extra wide street comfort optic

CiviTEQ Large, Extra wide road optic

CiviTEQ Extra Large, Narrow road optic

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
CQ XL 120L35-740 NR BPS CL2 M60 R9006-S12517435LED20.1096665722
CQ XL 120L35-740 NR BPS CLO CL1 M7611915691LED20.1096665723
CQ XL 120L35-740 NR BPS CLO CL1 PN M7611915691LED20.1096665724
CQ XL 120L50-740 NR BPS CL2 M60 R9006-S17923710LED20.1096665731
CQ XL 120L50-740 NR BPS CLO CL1 M7617021339LED20.1096665732
CQ XL 120L50-740 NR BPS CLO CL1 PN M7617021339LED20.1096665733
CQ XL 120L70-740 NR BPS CL2 M60 R9006-S25831252LED20.1096665740
CQ XL 120L70-740 NR BPS CLO CL1 M7624528127LED20.1096665741
CQ XL 120L70-740 NR BPS CLO CL1 PN M7624528127LED20.1096665742
CQ XL 144L35-740 NR BPS CL2 M60 R9006-S15120848LED20.1096665749
CQ XL 144L35-740 NR BPS CLO CL1 M7614418764LED20.1096665750
CQ XL 144L35-740 NR BPS CLO CL1 PN M7614418764LED20.1096665751
CQ XL 144L50-740 NR BPS CL2 M60 R9006-S21728279LED20.1096665758
CQ XL 144L50-740 NR BPS CLO CL1 M7620625451LED20.1096665759
CQ XL 144L50-740 NR BPS CLO CL1 PN M7620625451LED20.1096665760
CQ XL 144L70-740 NR BPS CL2 M60 R9006-S30837104LED20.1096665767
CQ XL 144L70-740 NR BPS CLO CL1 M7629233393LED20.1096665768
CQ XL 144L70-740 NR BPS CLO CL1 PN M7629233393LED20.1096665769

CiviTEQ Extra Large, Road comfort optic

CiviTEQ Extra Large, Wide street optic
