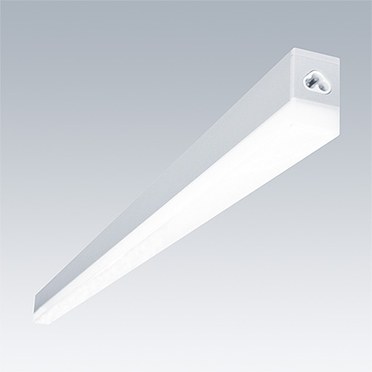

Equaline Mini
A slim LED batten with contemporary design that provides quality light to the architecture
- Rectangular shape provides a functional profile without dominating the architecture
- Seamless and consistent lit-line all along the luminaire's entire length
- Anodized aluminium body brings high quality elegant look
- Very high efficacy thanks to the use of latest LED technology
Materials and Finish
Body: extruded aluminium with anodized finish
Diffuser: opal PC plastic
End-cap: dual color injected PC plastic
安装与固定
Suitable for surface or suspended (with optional suspension kit) mounting. Electrical connection either via connector in endcap (version SD) or via flap in rear of body. Linear continous run by connecting output socket in endcap (all versions) and connector in next luminaire (END versions) with an optional electrical connector.
Specification
To specify state:
A slender LED batten with aluminium body and opal PC diffuser, lengths of 580mm and 1180mm. High efficacy up to 117Llm/W. Can be individual or continuous mounted. Provides lumen packages of 1050, 2100 and 4200lm.
As Thorn EquaLine Mini.
▼ Equaline Mini
Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
---|---|---|---|---|---|---|---|---|---|
EQUAMINI L580 LED950-830 C | 9 | 1071 | LED | 0.53 | 22660772 |
▼ Equaline Mini, accessories
Description | Wt (kg) | SAP Code | |||||||
---|---|---|---|---|---|---|---|---|---|
EQUAMINI ELECTRICAL CONNECTOR | 0.03 | 96630783 | |||||||
EQUAMINI I BRACKET (PK 10) | 0.01 | 22660831 | |||||||
EQUAMINI L BRACKET (PK 10) | 0.01 | 22660840 | |||||||
EQUAMINI SIDE FEED IN CABLE 300MM | 0.01 | 96630784 | |||||||
EQUAMINI STANDARD MOUNT BRACKET (10pc) | 2.56 | 59010993 | |||||||
EQUAMINI SUSPENSION KIT PAIR 1500 | 0.08 | 59010273 | |||||||
EQUAMINI T BRACKET (PK 10) | 0.01 | 22660832 |
