ArrowFlex 2C / ARROWFLEX 2C LED800-840 IP44

22665281

Data Sheet

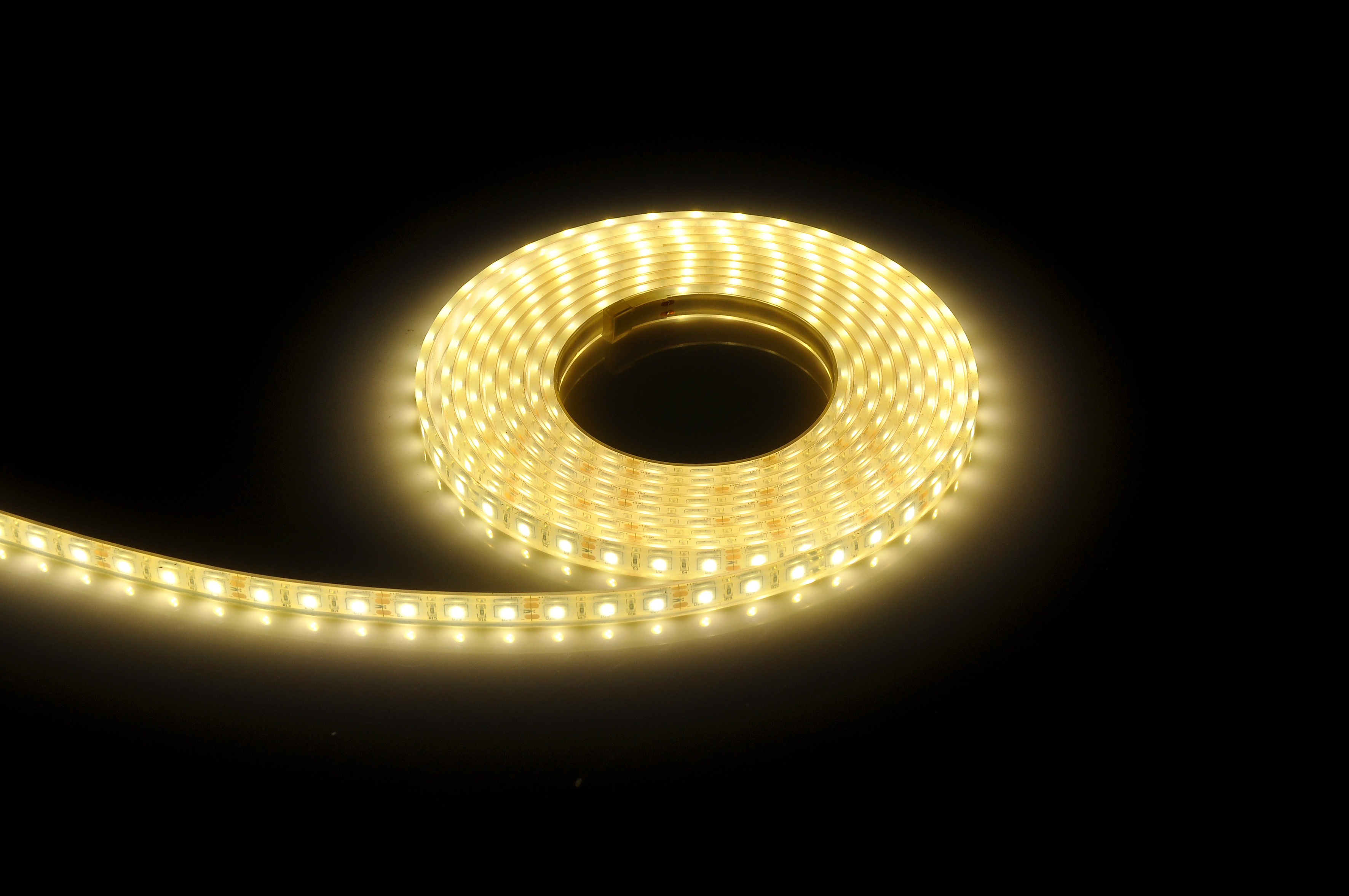

5m length of compact and flexible LED strip for indirect and emotional lighting, covelighting and backlighting for horizontal or vertical niches. Can be cut on site on pre-defined cutting marks. Self adhesive tape on the reverse, for surface mounting to straight, clean surfaces. 120 LED/m for high lighting homogeneity.

Complete with 4000K LED, 9.6W/m, 800 lm/m, 120° beam angle, IP44

Dimensions: 5000 x 10 x 4 mm
Total power: 9.4 W
Luminaire luminous flux: 864 lm
Luminaire efficacy: 92 lm/W
Weight: 0.6 kg

Rated median useful life: 50000h

更多选择
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:864 lm
  • Luminaire efficacy*:92 lm/W
  • Lamp efficacy:97 lm/W
  • Colour Rendering Index min.:80
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam)*:3
  • Rated median useful life*:50000h L70 at 25°C
  • Ballast:1x HF_
  • Luminaire input power*:9.4 W Lambda = 0.95
  • Dimming:TLD0

Photometry

配光配置

CalcExpress

Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.
