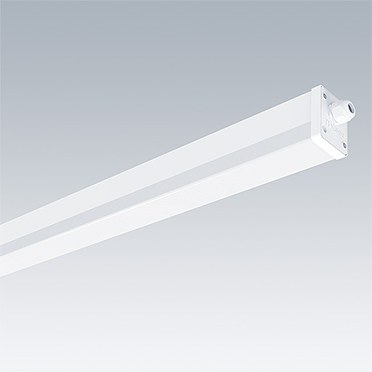

Formula LED
A high energy saving solution of LED linear type luminaire suitable for any lighting application
- IP65 ingress protection as standard replace the traditional fluorescent batten perfectly
- Opal diffuser offers a comfortable lighting effect
- Simple and elegantly designed linear type aluminium base luminaire suited for any lighting application
- Professional heatsink designed to guarantee 50khrs lighting performance
Materials and Finish
Body: Extruded Aluminium alloy with white powder coating
Diffuser: PC opal
End cap: Die-cast Aluminium with white powder coating
安装与固定
Surface mounted: Install the mounting clip (2x) by M4 x 30 SS screw (2x) based on the suggested location. Remove 4pcs of screws from the end cap for connecting the 220VAC Mains power, after that, make sure to secure the 4pcs of screws back to the end cap. Put the luminiare to the mounting clip until a "click" soundis heard for completion
Specification
Surface mounted LED type linear luminaire with Aluminium body and PC opal diffuser offering a comfortable lighting effect; IP65 versions come with gland and breather; build-in high efficiency LED transformer optimised for energy saving in any lighting application; Self-retained screws on end cap; Colour rendering Ra > 80; colour temperature 4000K/6500K; long lifetime performance Ta25° up to 50,000hrs for a luminous flux at L70 of initial value; mains voltage: 220-240VAC / 50-60Hz; CE certified
As Thorn Formula LED
▼ Formula LED
| Description | Type | Wt (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| FORMULA LED2000-865 L1250 HF IP65 | LED | 2.20 | 22666195 | ||||||
| FORMULA LED4000-865 L1250 HF IP65 | LED | 2.20 | 22666196 |
